Outline

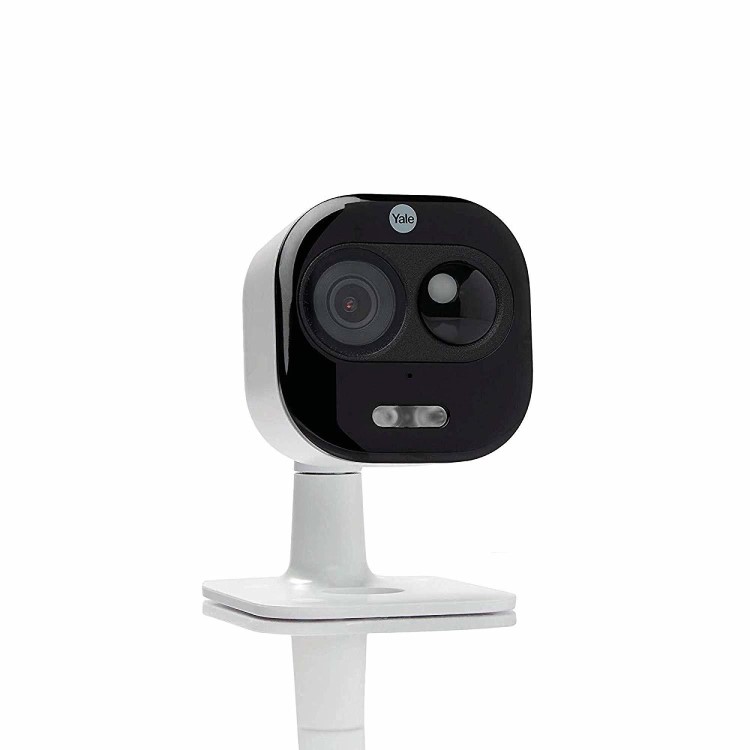

This project uses the case and various components from a All in one AW 01 Yale camera. This camera was purchased on eBay with a known fault, essentially the Wi-fi did not work, and on investigation was seen to be unrealistic to repair.

The aim of this project is to see how much of the original broken Yale Camera can be reused and made useful, perhaps even returning it to being a full security working camera.

  What components from the Yale unit can be reused?
    - housing and mounting bracket
    - External PSU (not for this camera)
    - camera
    - IR LEDs
    - speaker / siren
    - microphone
    - spotlight
    - Information LEDs
    - PIR (motion detection)
    - SD card

These components range in complexity, e.g. Leds should be simple to drive, but the camera would be very challenging to reuse.

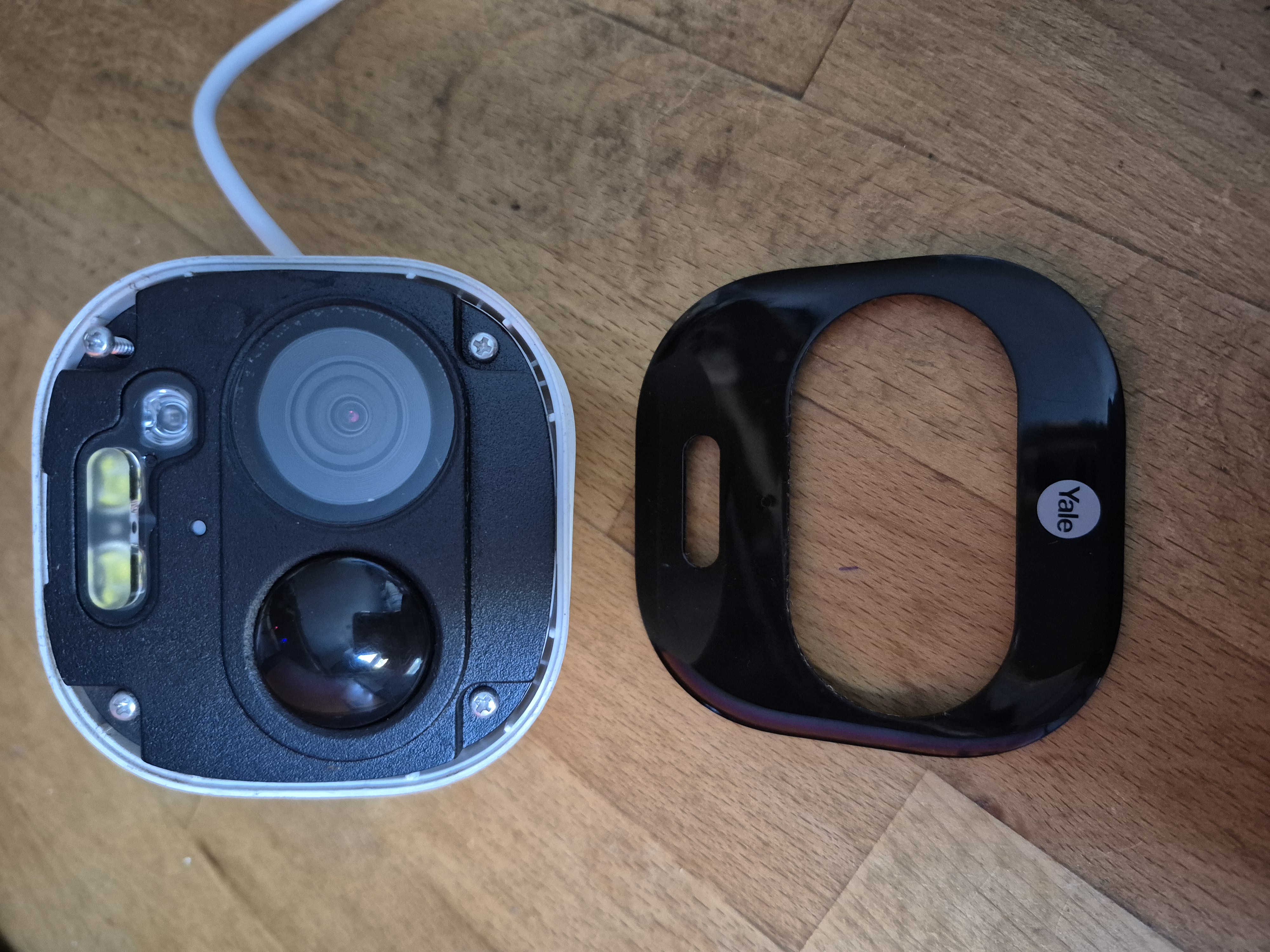

One serious difficulty when building your own camera is finding a suitable housing, especially one that can be mounted externally. This is even more troublesome if the housing has to contain any extras (microphone/speaker/siren/PIR/second camera), the Yale camera unit has provision for these.

Sourcing a housing is difficult but you may also be able to obtain one on eBay as a damaged of failed unit.

Hardware Investigation

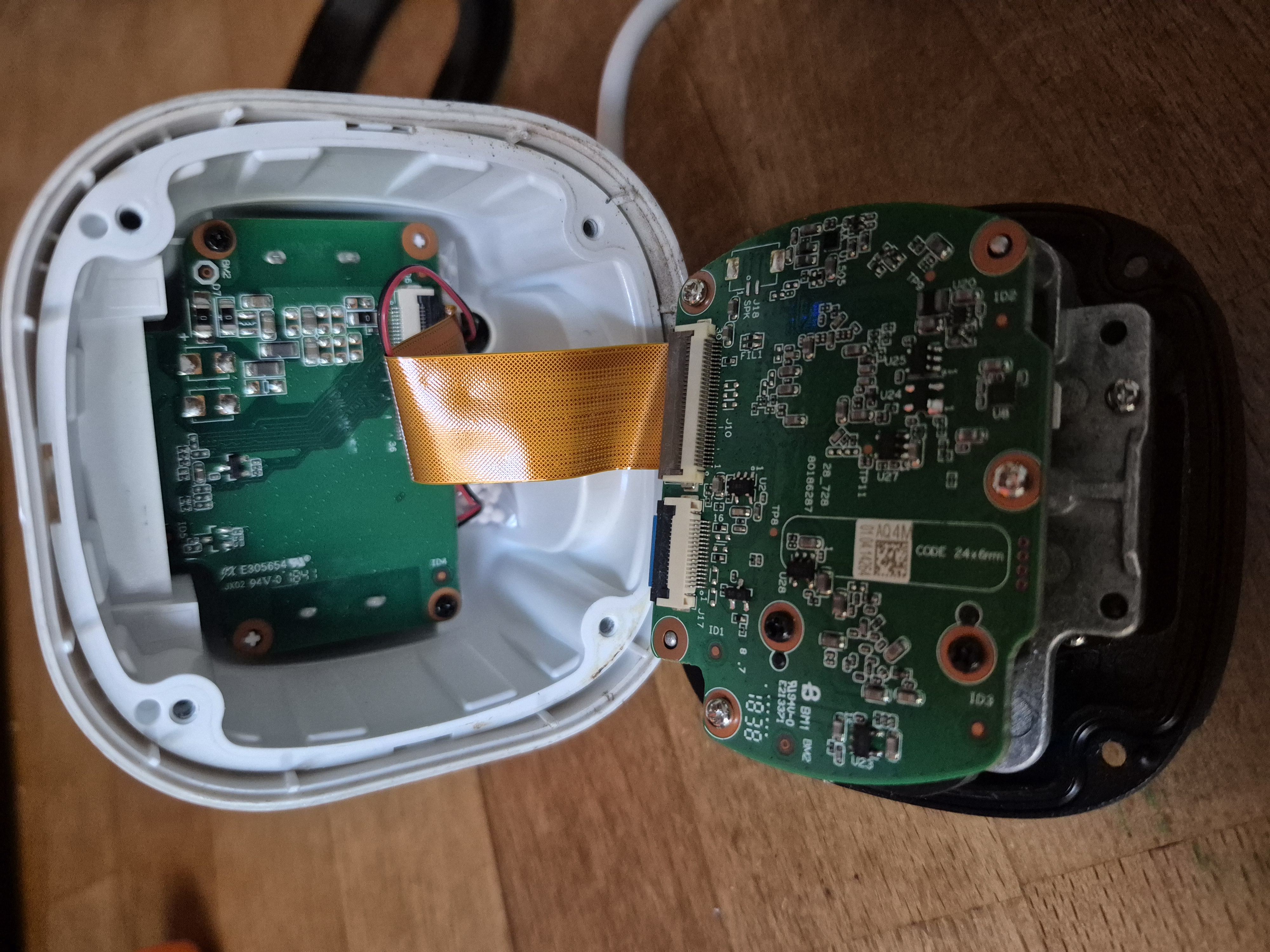

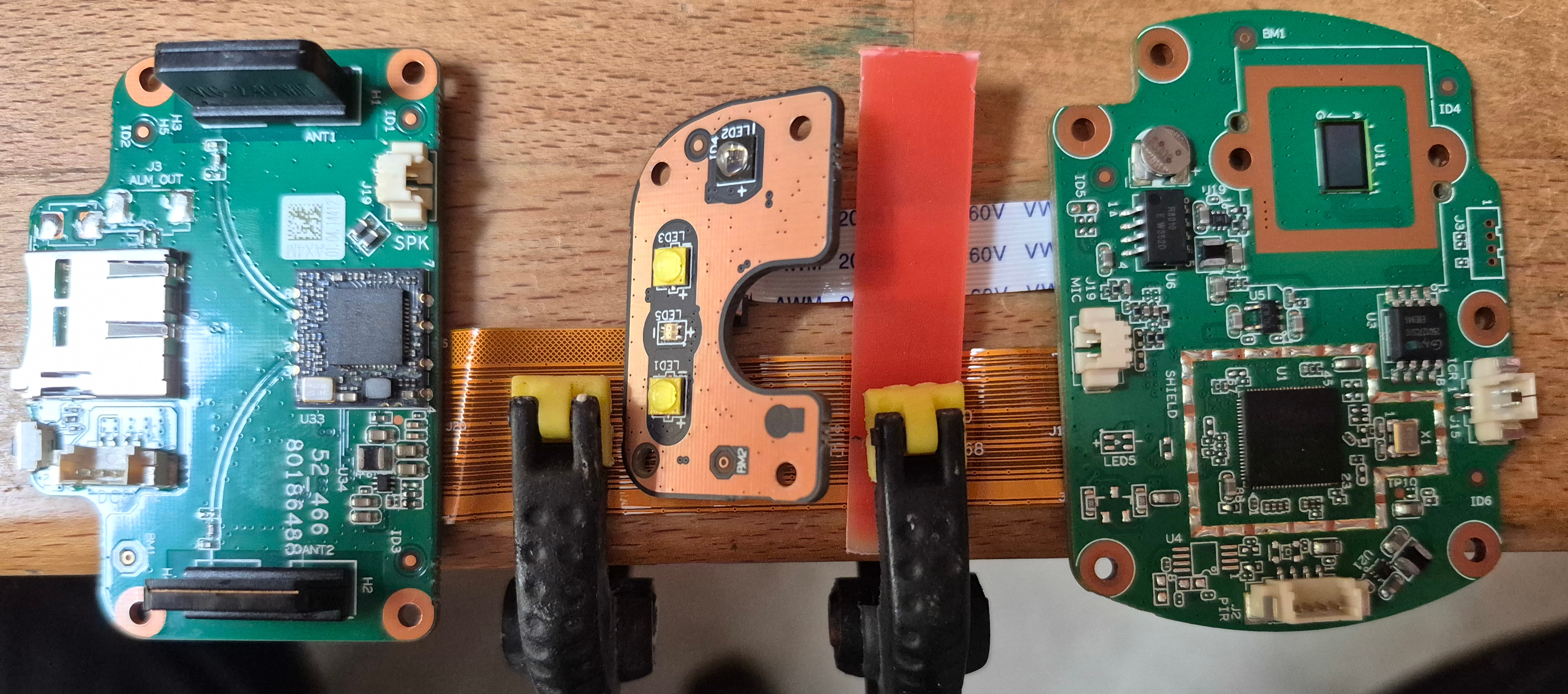

The hardware in this unit is quite sophisticated, internally it contains 4 purpose built PCBs, these contain surface mount components and are connected using ribbon and discrete cables, .

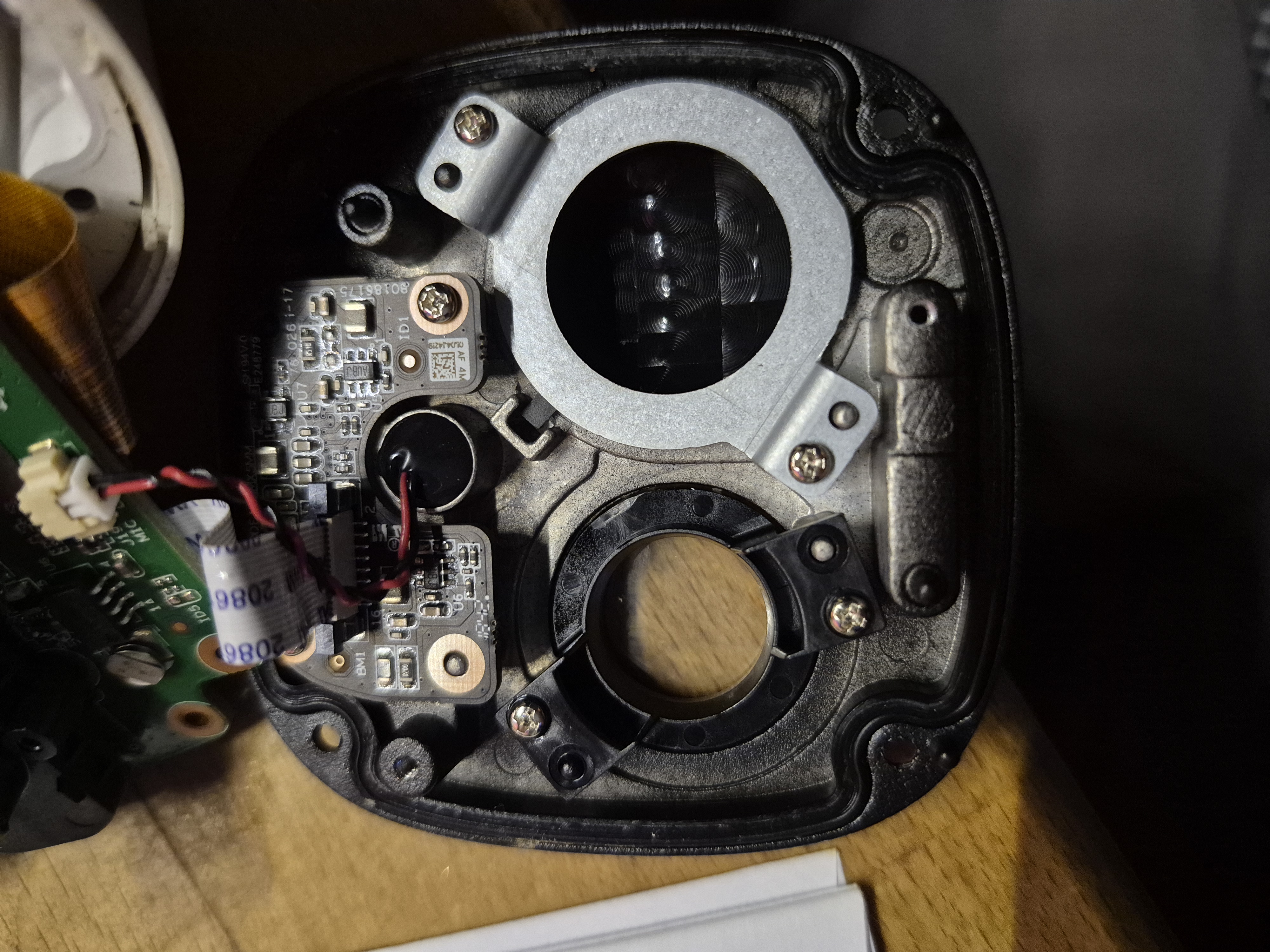

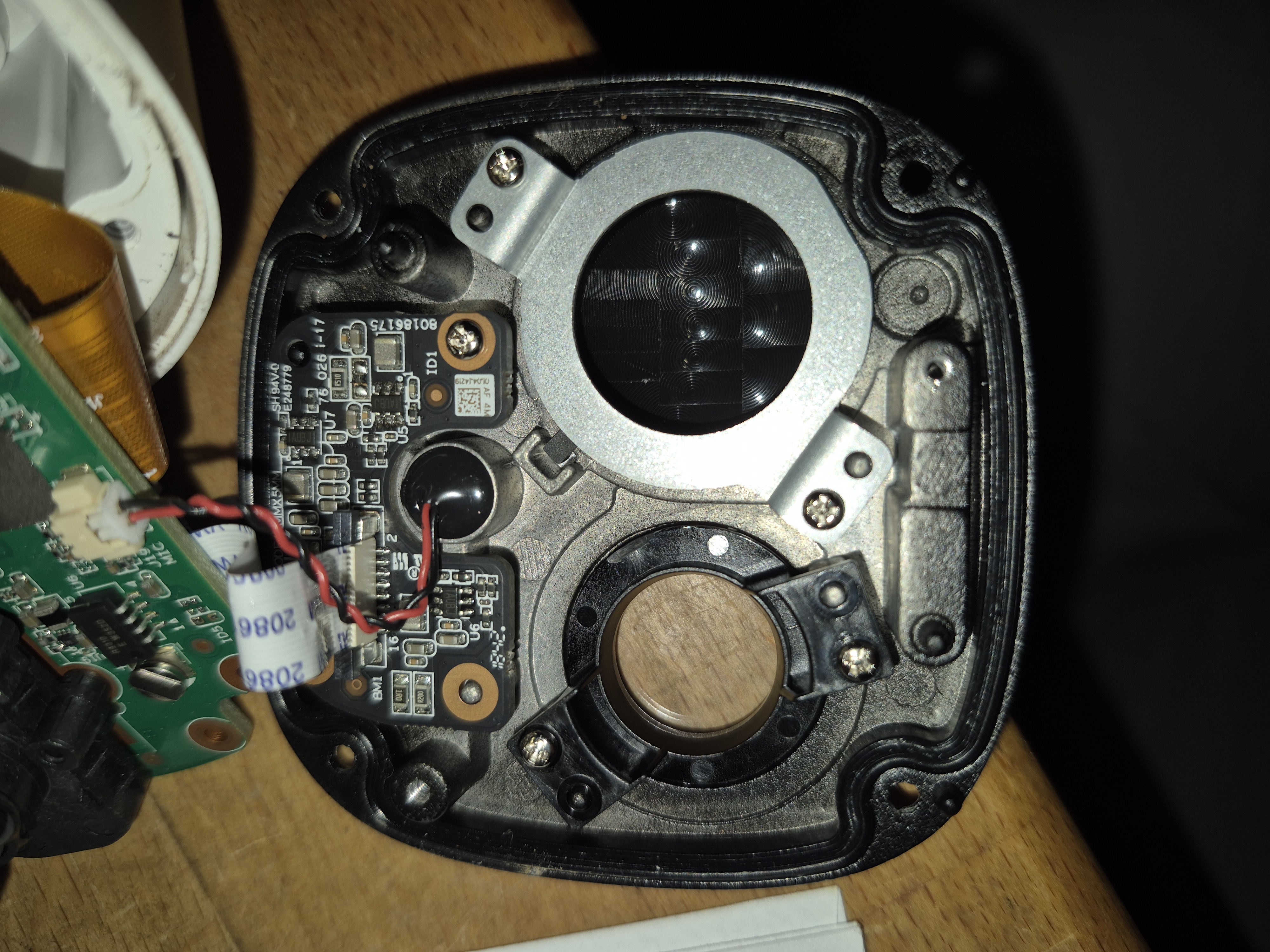

The passive infrared (PIR) sensor is housed on its own PCB

The rest of the electronics is on 3 PCBS Linked with ribbon cables

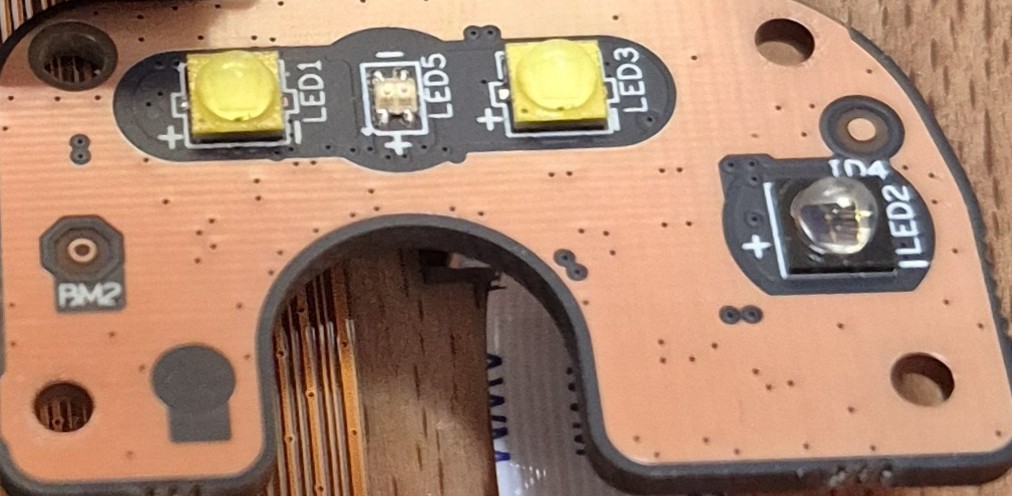

LED driver board provides spotlight, IR LEDs, Information LEDs

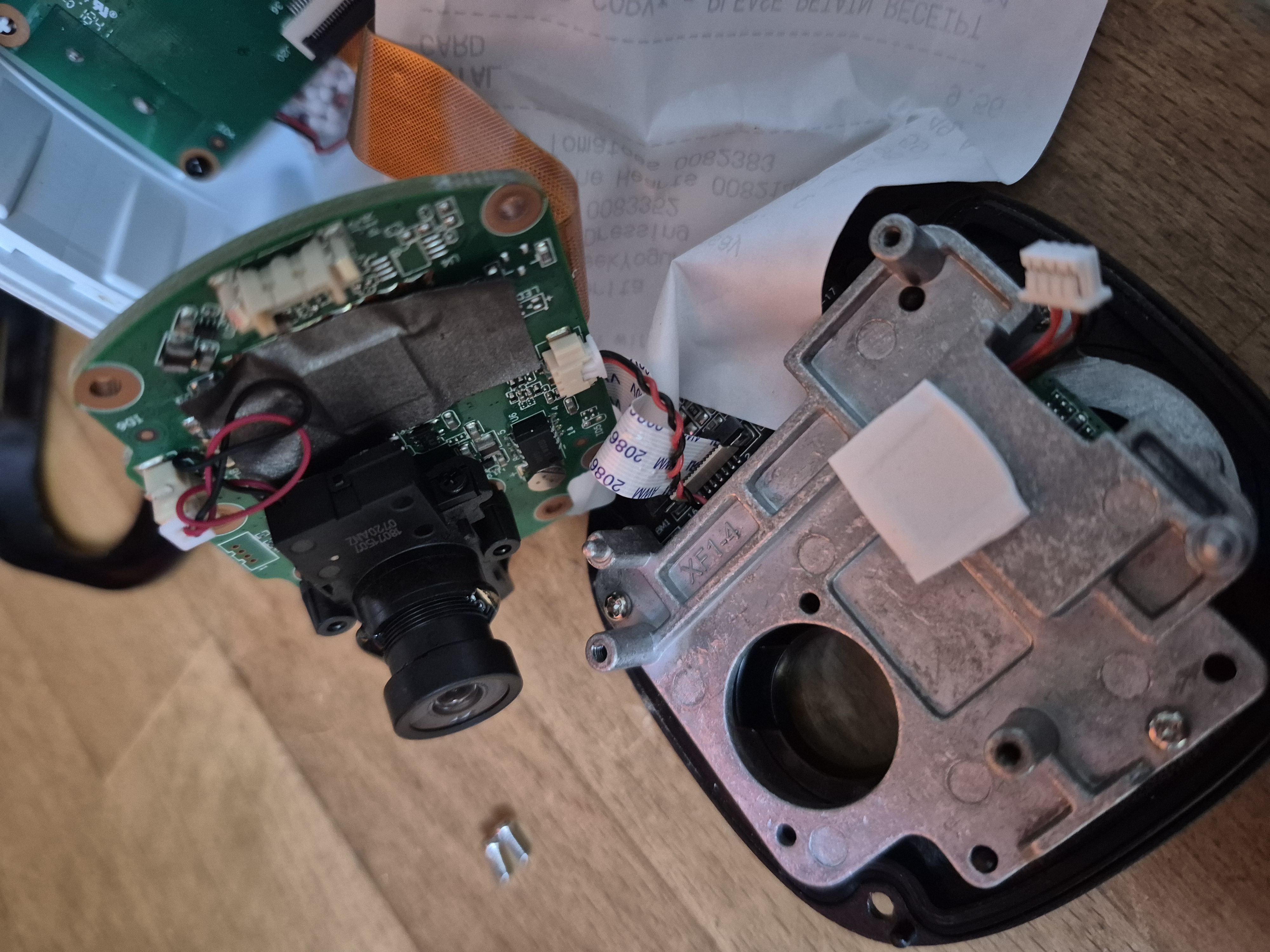

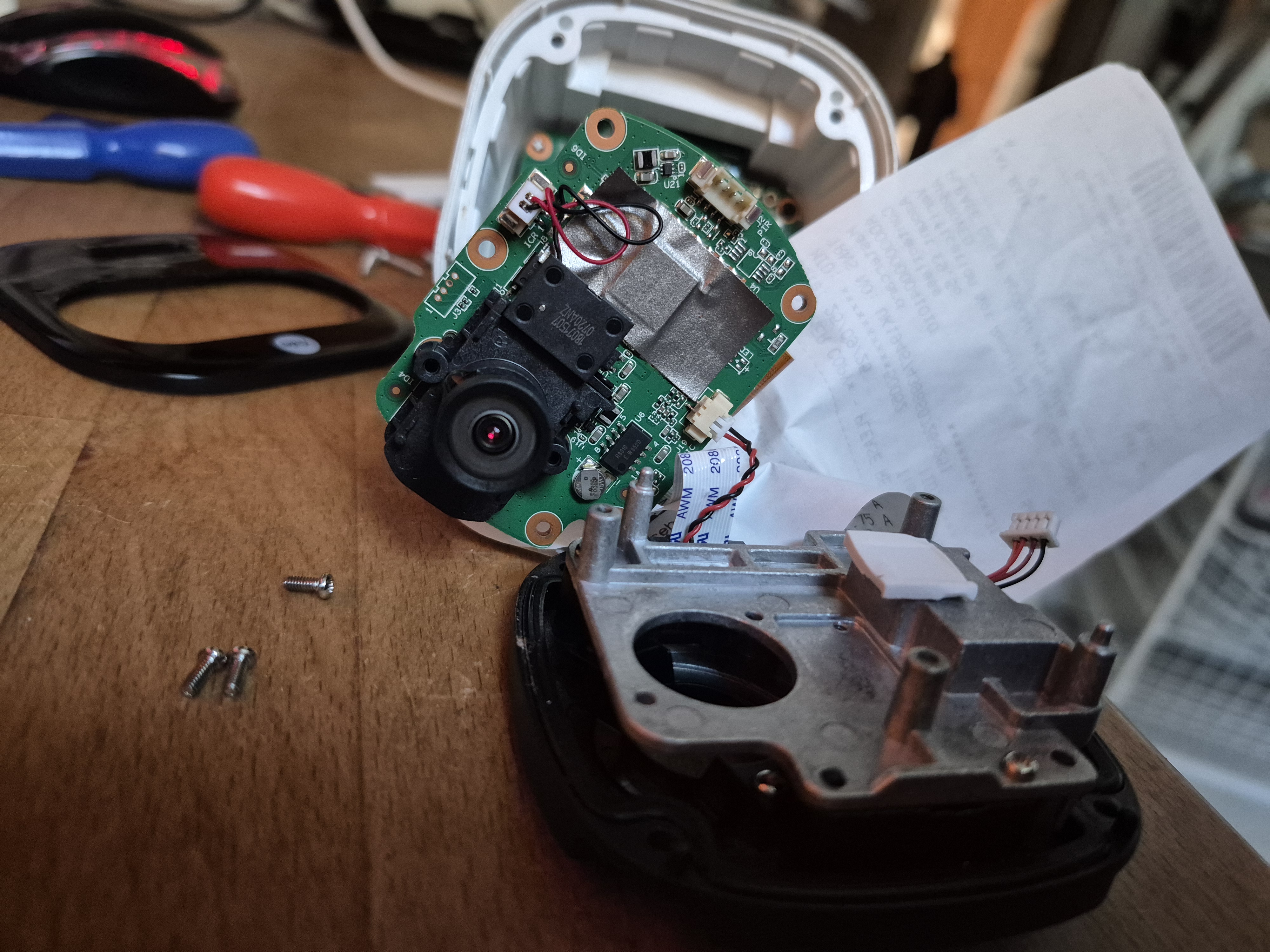

Main board provides CPU, Storage, Camera.

Interface board provides SD card, Wifi including Aerials

Todo: show Photos of Yale disassembly

Todo: show complete unit

Specification / Design / KISS

POE Compute module 5 basic 12MP Raspberry Pi Camera Module 3, Standard

Grove Vision AI Module V2 Raspberry Pi basic camera OV5647-62 FOV Camera Module for Raspberry Pi 3B+4B?

PIR or Grove board to trigger main Camera?

—> POE —> RPi 5 POE hat —> RPi 5 —> Camera —> Pico —> spotlight —> AI camera —> IR LEDs —> siren —> speaker/microphone —> PIR (motion detection)

Design Notes

Other than the case itself, the first good candidate for reuse would appear to be the LED driver board (spotlight, IR LEDs, Information LEDs). these are driven via a ribbon cable, it will be necessary to identify the signals in the ribbon cable and to hook up to it.

The speaker / siren and microphone, but also appear to be good candidates.

The PIR sensor on its on the PCB is a possibility, but will require the signal interface to be determined.

A CPU module will have to be piggybacked onto a custom PCB.

The PCB for this project is designed to fit in place of the original PCB, and to use it’s mounting points.

The main camera is a RPi 5 module with a carrier camera.

GPIO Assignments

🟦 Outputs:

GP3 → Spotlight
GP4 → IR LEDs
GP5 (PWM) → Speaker (siren, via amp)
GP6 → PIR test LED
GP7 → Info LED 1
GP8 → Info LED 2

🟩 Inputs:

GP2 → PIR sensor
GP9 → Test IN1 (toggles spotlight)
GP10 → Test IN2 (toggles IR LEDs)
GP11 → Test IN3 (toggles Info LED 1)
GP12 → Test IN4 (toggles Info LED 2)
GP13 → Test IN5 (PWM Siren)

🔴 Power pins: 3.3V / 5V ⚫ Ground pins: GND

Todo: show Schematic

What is the control interface?

Images

PCB

The PCB has been produced using KiCAD 9.0 Todo: show PCBs

Build Notes

Operation Notes

Applicable Links
